Gotion Product Portfolio
Explore our range of innovative energy storage solutions.
Beyond the Product: Our Commitment to Your Success
Priority Delivery & EU Stock
Benefit from our strategic partnership with Gotion, ensuring fast and reliable delivery directly from European stock. We minimize lead times to get your project online faster.
Expert Consulting & Sizing
Our team provides expert consulting to help you select and size the perfect BESS for your needs, ensuring optimal performance and ROI from day one.
Full Lifecycle Support
From installation and commissioning to ongoing 24/7 monitoring, O&M, and warranty management, we provide complete support throughout the asset's lifetime.
Grid Services & Revenue Optimization
We don't just install storage; we make it work for you. Our expertise in grid services allows us to monetize your BESS's unused capacity, creating additional revenue streams through energy trading and ancillary services.

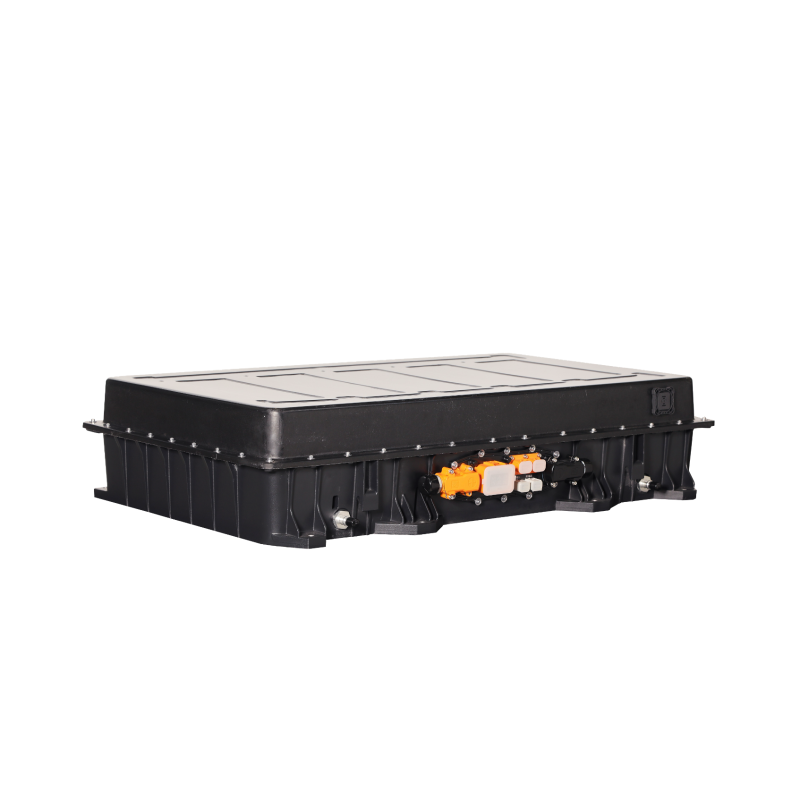

Battery Pack for Commercial Vehicles
Battery Data
- Cell type: LFP
- Battery capacity: 39,2kWh
- System voltage range: 115 V
- Lifetime: 8000 cycles
General Data
- Max charge /discharge rate: 0.5P@25℃
- Dimension of battery unit (W*D*H): 1126 * 687 * 245mm
- Weight of battery unit: 260 kg
- Operating temperature range: -30-45℃
- Operating humidity range: 0-95 %
- Cooling type: Liquid Cooled
- Enclosure protection rating: IP54
- Altitude: ＜3000m
- Communication: CAN, RS485, Ethernet

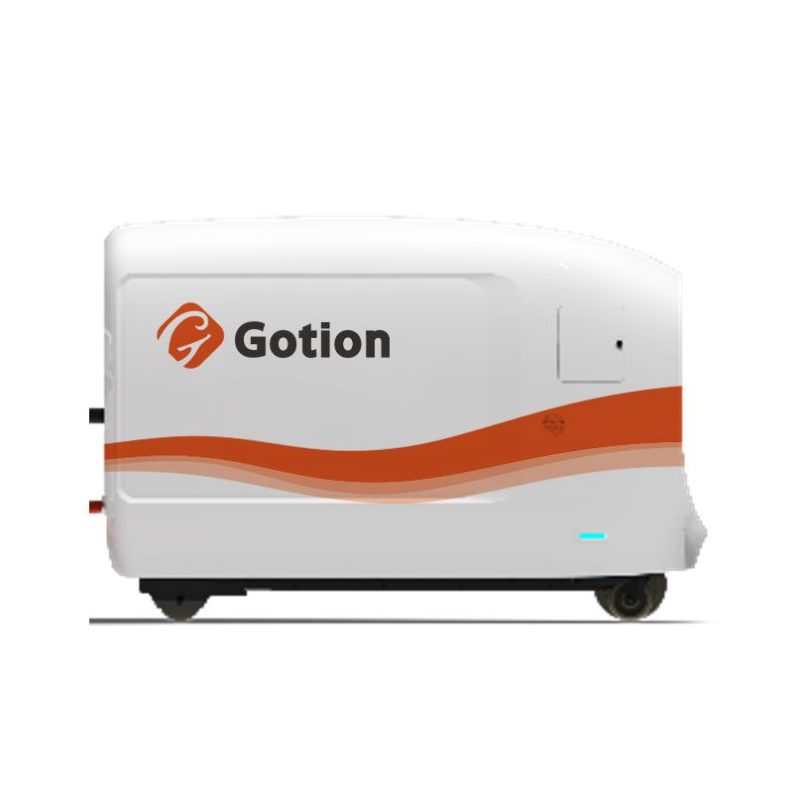

Mobile Charger
Battery Data
- Cell type: LFP
- Battery capacity: 184kWh
- System voltage range: 200Vdc-1000Vdc(CE/UL)
General Data
- Max charge/discharge rate: 60kW
- Dimension (W*D*H): 1054*2100*1515mm
- Weight of battery unit: ≈ 2.1t
- Operating temperature range: -20 - 45℃
- Operating humidity range: 0-95 %
- Cooling type: Natural cooling
- Enclosure protection rating: IP54
- Altitude: ＜3000m
- Communication: CAN, 4G
- Certification: UL1973,UL9540A, IEC62619, UN38.3, IEC61851, UL2202
211 kWh BESS Container
ESC-R100-211-CE
Battery Data
- Cell type: LFP
- Battery capacity: 211 kWh
- System voltage range: 600-803 V
General Data
- Output voltage: 400V@AC
- System configuration: 1P220S
- Rated power/PCS power: 100kW/100kW
- Dimensions (L*W*H): 1340*1300*2300mm
- Weight: 2600 kg
- Ingress Protection: IP55
- Operating Temperature: -20℃ - 50℃
- Cooling method: PCS air cooling + battery pack liquid cooling
- Fire protection system: Aerosol FSS
- System communication prot: 4G, RS485, Ethernet
- System communication protocol: MODBUS/MQTT

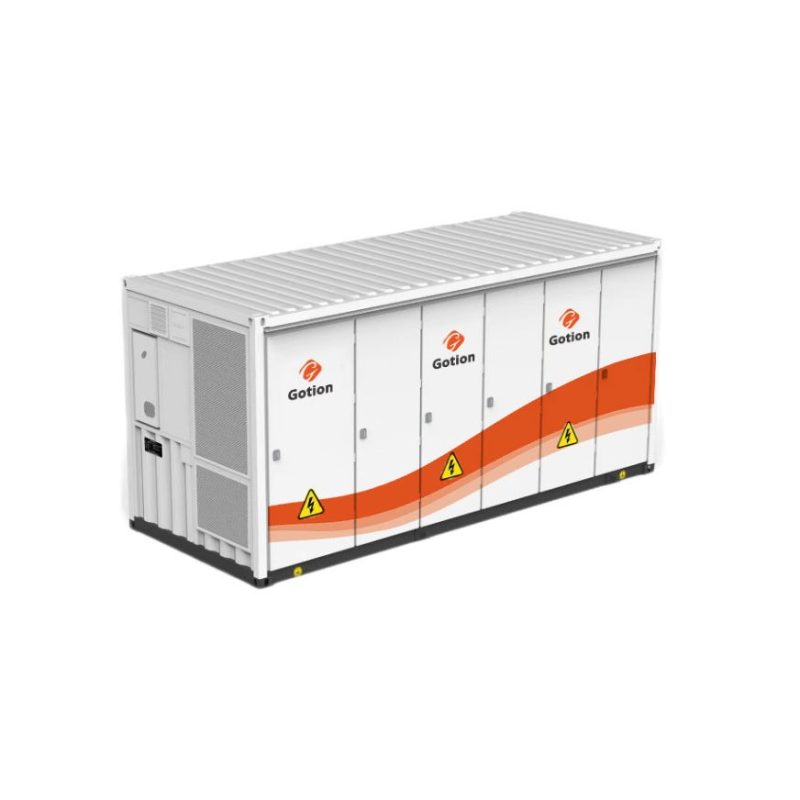

3,42 MWh BESS Container
ESD3421kWh
Battery Data
- Cell type: LFP
- Battery capacity: 3421kWh
- System voltage range: 1109-1426V
General Data
- Max charge/discharge rate: 0.5P@25℃
- Dimension of battery unit (W*D*H): 6058 * 2438 * 2896mm
- Weight of battery unit: ≈ 37t
- Operating temperature range: -30-45℃
- Operating humidity range: 0-95 %
- Cooling type: Liquid Cooled
- Enclosure protection rating: IP54
- Altitude: <3000m
- Communication: CAN, RS485, Ethernet
- Certification: UL1973,UL9540A, IEC62619, UN38.3, IEC62477, IEC61000, IEC6073, IEC62933

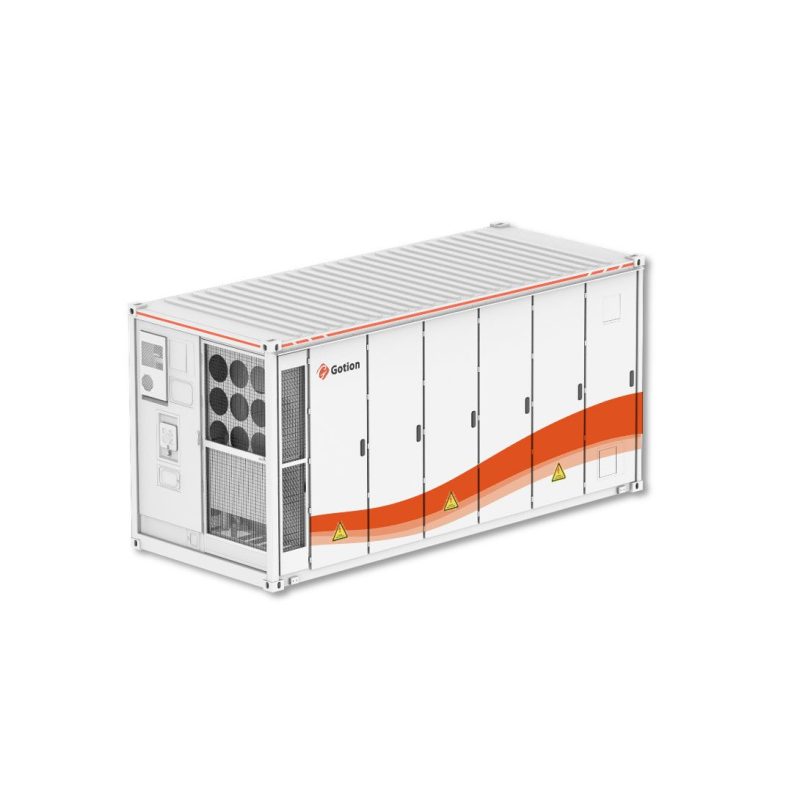

5 MWh BESS Container
ESD31331-0P5015kWh
Battery Data
- Cell type: LFP
- Battery capacity: 5014kWh
- System voltage range: 1040-1498V
General Data
- Max charge/discharge rate: 0.5P@25℃
- Dimension of battery unit (W*D*H): 6058 * 2438 * 2896mm
- Weight of battery unit: ≈ 43t
- Operating temperature range: -30-45℃
- Operating humidity range: 0-95 %
- Cooling type: Liquid Cooled
- Enclosure protection rating: IP55
- Altitude: <3000m
- Communication: CAN, RS485, Ethernet
- Certification: UL1973,UL9540A, IEC62619, UN38.3, IEC62477, IEC61000, IEC6073, IEC62933
Product FAQ
Which Gotion BESS containers are available?
Our portfolio highlights systems such as 211 kWh, 3.42 MWh and 5 MWh class containers, plus commercial vehicle packs and mobile chargers — final configuration depends on project sizing.
Do you support EU delivery and sizing?
Yes. Priority delivery from European stock, consulting for system sizing, and full lifecycle O&M are part of the DBE offering.
Can unused capacity earn grid revenue?
Where market rules allow, we help monetize spare capacity through energy trading and ancillary services on top of on-site savings.
